BF-1KV/300A-5000A (Tailed plate connection)

Current Location:home > products > Standard and ordinary-sized bushes

BF-1KV/300A-5000A (Tailed plate connection)
Contacts:Section manager
Tel:0086-318-3736777 0086-318-3736111
Mobile: 86-13333086669

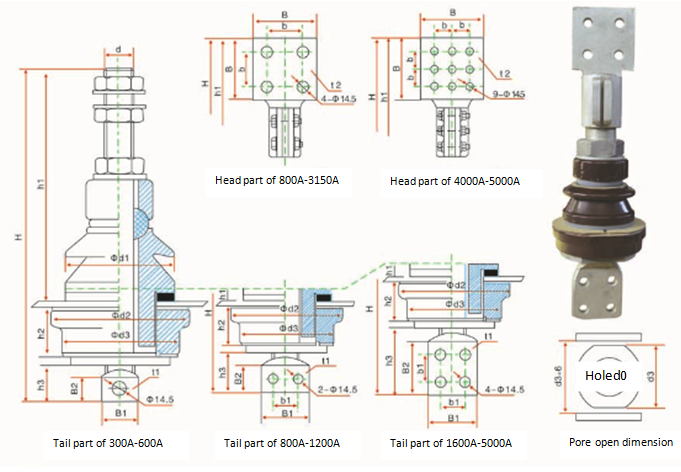

■ Outline dimension

■ Technical parameters and outline dimension of bush

Code	Type-Voltage/Current KV/A	Dimensions (mm)																Weight Kg
Code	Type-Voltage/Current KV/A	H	h1	h2	h3	d	d0	d1	d2	d3	B	b	B1	B2	b1	t1	t2	Weight Kg
WT.0300.2	BF-1/300	203	132	34	33	M12	30	50	65	55			25	25		4		0.7
WT.0400.2	BF-1/400	232	150	34	42	M16	50	75	95	80			30	30		6		1.4
WT.0600.2	BF-1/600	242	160	34	42	M20	50	75	95	80			38	30		8		1.7
WT.0800.3	BF-1/800	372	281	39	42	M24	60	90	110	100	80	40	60	30	30	8	12	5.3
WT.1000.3	BF-1/1000	372	281	39	42	M30	60	90	110	100	80	40	70	30	45	8	12	5.5
WT.1200.3	BF-1/1200	372	281	39	42	M33	60	90	110	100	80	40	70	30	45	8	12	6.3
WT.1600.2	BF-1/1600	483	327	39	42	Φ38	70	100	130	110	100	50	80	85	45	12	16	10
WT.2000.2	BF-1/2000	486	332	39	105	Φ42	85	115	150	140	100	50	80	85	45	14	16	11
WT.3150.2.A	BF-1/3150	486	332	39	105	Φ48	85	115	150	140	100	50	80	85	45	16	16	12.5
WT.3150.2.B	BF-1/3150	506	332	39	105	Φ48	85	115	150	140	120	60	80	85	45	16	16	13
WT.4000.2	BF-1/4000	581	420	44	105	Φ52	95	130	170	150	150	50	80	85	45	18	20	21
WT.5000.2	BF-1/5000	581	420	44	105	Φ56	95	130	170	150	150	50	80	85	45	18	22	23
