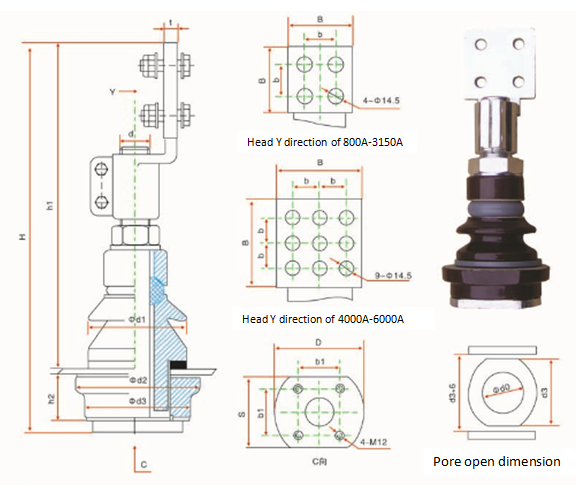

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Weight Kg |
|||||||||||||
|
H |
h1 |
h2 |
d |
d0 |
d1 |
d2 |
d3 |
B |
b |
t |
D |
S |
b1 |
|||
|
WT.0800.2 |
BF-1/800 |
330 |
281 |
39 |
M24 |
60 |
90 |
110 |
100 |
80 |
40 |
12 |
85 |
75 |
33 |
4.8 |
|
WT.1000.2 |
BF-1/1000 |
330 |
281 |
39 |
M30 |
60 |
90 |
110 |
100 |
80 |
40 |
12 |
85 |
75 |
33 |
5.0 |
|
WT.1200.2 |
BF-1/1200 |
330 |
281 |
39 |
M33 |
60 |
90 |
110 |
100 |
80 |
40 |
12 |
85 |
75 |
33 |
5.8 |
|
WT.1600.2 |
BF-1/1600 |
380 |
327 |
39 |
Φ38 |
70 |
100 |
130 |
110 |
100 |
50 |
16 |
100 |
90 |
45 |
9.0 |
|
WT.2000.1 |
BF-1/2000 |
385 |
332 |
39 |
Φ42 |
85 |
115 |
150 |
140 |
100 |
50 |
16 |
100 |
90 |
45 |
10 |
|
WT.3150.1.A |
BF-1/3150 |
385 |
332 |
39 |
Φ48 |
85 |
115 |
150 |
140 |
100 |
50 |
16 |
120 |
90 |
45 |
11 |
|
WT.3150.1.B |
BF-1/3150 |
405 |
352 |
39 |
Φ48 |
85 |
115 |
150 |
140 |
120 |
60 |
16 |
120 |
100 |
45 |
12 |
|
WT.4000.1 |
BF-1/4000 |
480 |
420 |
44 |
Φ52 |
95 |
130 |
170 |
150 |
150 |
50 |
20 |
135 |
120 |
55 |
20 |
|
WT.5000.1 |
BF-1/5000 |
480 |
420 |
44 |
Φ56 |
95 |
130 |
170 |
150 |
150 |
50 |
22 |
135 |
120 |
55 |
21 |
|
WT.6000.1 |
BF-1/6000 |
495 |
430 |
44 |
Φ62 |
105 |
140 |
180 |
160 |
150 |
50 |
25 |
150 |
130 |
62 |
25 |
