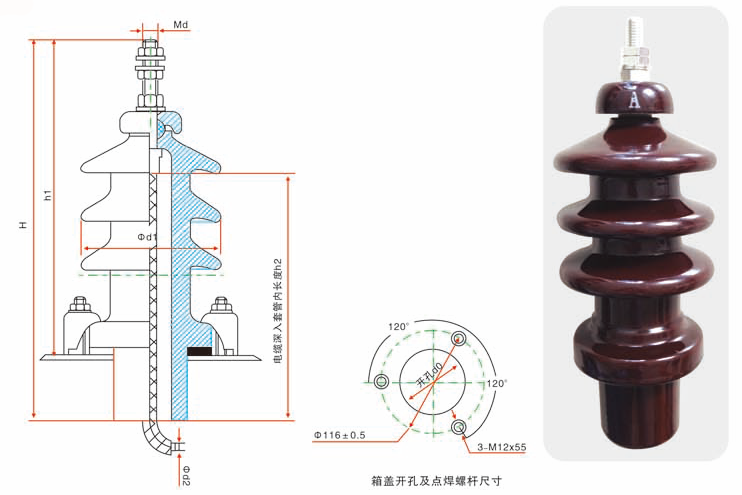

■ Outline dimension
■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
Creep age Distance (mm) |
Weight Kg |
||||||
|
H |
h1 |
h2 |
Md |
d1 |
d2 |
d0 |
|
||||
|
WT.0050.10.1 |
BJL-10/50 |
304 |
250 |
184 |
12 |
115 |
5 |
70 |
Single Umbrella |
270 |
2.5 |
|
WT.0100.10.1 |
BJL-10/100 |
304 |
250 |
184 |
12 |
115 |
8 |
70 |
Single Umbrella |
270 |
2.5 |
|
WT.0275.10.1 |
BJL-10/275 |
304 |
250 |
184 |
12 |
115 |
10 |
70 |
Single Umbrella |
270 |
2.5 |
|
WT.0050.10.2 |
BJL-10/50 |
384 |
330 |
264 |
12 |
115 |
5 |
70 |
Single Umbrella |
400 |
3.0 |
|
WT.0100.10.2 |
BJL-10/100 |
384 |
330 |
264 |
12 |
115 |
8 |
70 |
Single Umbrella |
400 |
3.0 |
|
WT.0275.10.2 |
BJL-10/275 |
384 |
330 |
264 |
12 |
115 |
10 |
70 |
Single Umbrella |
400 |
3.0 |
|
WT.0050.10.1.W |
BJLW-10/50 |
320 |
266 |
200 |
12 |
145 |
5 |
70 |
Big and small umbrellas |
440 |
3.1 |
|
WT.0100.10.1.W |
BJLW-10/100 |
320 |
266 |
200 |
12 |
145 |
8 |
70 |
Big and small umbrellas |
440 |
3.1 |
|
WT.0275.10.1.W |
BJLW-10/275 |
320 |
266 |
200 |
12 |
145 |
10 |
70 |
Big and small umbrellas |
440 |
3.1 |
|
WT.0050.20.1 |
BJL-20/50 |
364 |
310 |
244 |
12 |
115 |
5 |
70 |
Single Umbrella |
340 |
2.8 |
|
WT.0100.20.1 |
BJL-20/100 |
364 |
310 |
244 |
12 |
115 |
8 |
70 |
Single Umbrella |
340 |
2.8 |
|
WT.0275.20.1 |
BJL-20/275 |
364 |
310 |
244 |
12 |
115 |
10 |
70 |
Single Umbrella |
340 |
2.8 |
|
WT.0050.20.1.W |
BJLW-20/50 |
364 |
305 |
244 |
12 |
140 |
5 |
70 |
Big and small umbrellas |
400 |
3.3 |
|
WT.0100.20.1.W |
BJLW-20/100 |
364 |
305 |
244 |
12 |
140 |
8 |
70 |
Big and small umbrellas |
400 |
3.3 |
|
WT.0275.20.1.W |
BJLW-20/275 |
364 |
305 |
244 |
12 |
140 |
10 |
70 |
Big and small umbrellas |
400 |
3.3 |
|
WT.0600.20.1.W |
BJLW-20/600 |
374 |
315 |
244 |
20 |
145 |
20 |
75 |
Big and small umbrellas |
400 |
4.5 |
