■ Outline dimension

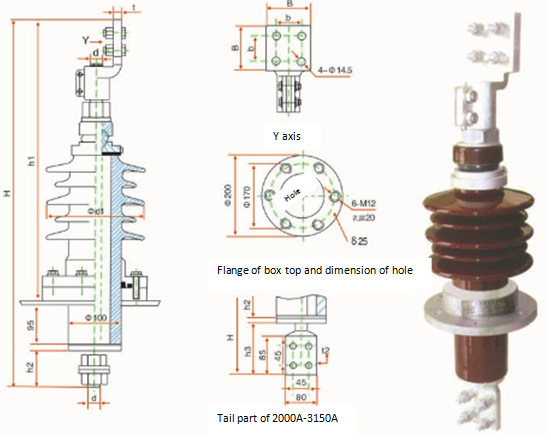

■ Technical parameters and outline dimension of bush
|
Code |
Type-Voltage/Current KV/A |
Dimensions (mm) |
Shape |
Creep age Distance (mm) |
Weight Kg |
||||||||
|
H |
h1 |
h2 |
d |
d1 |
B |
b |
t |
t2 |
|||||
|
WT.0800.12.F |
BDF-12/800 |
610 |
465 |
38 |
M24 |
150 |
80 |
40 |
12 |
|
Single Umbrella |
320 |
10.6 |
|
WT.1000.12.F |
BDF-12/1000 |
612 |
465 |
40 |
M30 |
150 |
80 |
40 |
12 |
|
Single Umbrella |
320 |
12.6 |
|
WT.1200.12.F |
BDF-12/1200 |
617 |
465 |
45 |
M33 |
150 |
80 |
40 |
12 |
12 |
Single Umbrella |
320 |
13.6 |
|
WT.2000.12.F |
BDF-12/2000 |
727 |
515 |
105 |
Φ42 |
150 |
100 |
50 |
16 |
14 |
Single Umbrella |
320 |
17.6 |
|
WT.3150.12.F |
BDF-12/3150 |
727 |
515 |
105 |
Φ48 |
150 |
100 |
50 |
16 |
16 |
Single Umbrella |
320 |
21 |
|
WT.0800.24.F |
BDF-24/800 |
650 |
505 |
38 |
M24 |
160 |
80 |
40 |
12 |
|
Single Umbrella |
340 |
12.7 |
|
WT.1000.24.F |
BDF-24/1000 |
652 |
505 |
40 |
M30 |
160 |
80 |
40 |
12 |
|
Single Umbrella |
340 |
13.7 |
|
WT.1200.24.F |
BDF-24/1200 |
657 |
505 |
45 |
M33 |
160 |
80 |
40 |
12 |
12 |
Single Umbrella |
340 |
14.7 |
|
WT.2000.24.F |
BDF-24/2000 |
767 |
555 |
105 |
Φ42 |
160 |
100 |
50 |
16 |
14 |
Single Umbrella |
340 |
19.8 |
|
WT.3150.24.F |
BDF-24/3150 |
767 |
555 |
105 |
Φ48 |
160 |
100 |
50 |
16 |
16 |
Single Umbrella |
340 |
21.7 |
|
WT.0800.24.FW |
BDFW-24/800 |
650 |
505 |
38 |
M24 |
190 |
80 |
40 |
12 |
|
Big and small umbrellas |
480 |
14.6 |
|
WT.1000.24.FW |
BDFW-24/1000 |
652 |
505 |
40 |
M30 |
190 |
80 |
40 |
12 |
|
Big and small umbrellas |
480 |
15.6 |
|
WT.1200.24.FW |
BDFW-24/1200 |
657 |
505 |
45 |
M33 |
190 |
80 |
40 |
12 |
12 |
Big and small umbrellas |
480 |
16.6 |
|
WT.2000.24.FW |
BDFW-24/2000 |
767 |
555 |
105 |
Φ42 |
190 |
100 |
50 |
16 |
14 |
Big and small umbrellas |
480 |
21.8 |
|
WT.3150.24.FW |
BDFW-24/3150 |
767 |
555 |
105 |
Φ48 |
190 |
100 |
50 |
16 |
16 |
Big and small umbrellas |
480 |
23.8 |
